B.1. - GZ curves.
B.1. - GZ curves.
|
|

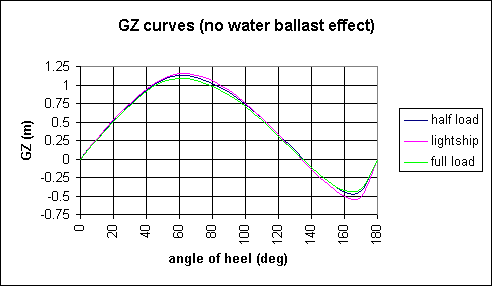

A Fast Offshore Cruiser - Appendices. B.1. - GZ curves. |
|
|
curve |
GZ @ 30 |
max GZ |
@ |
LPS |
ratio |
|---|---|---|---|---|---|
|
lightship |
0.751m |
1.149m |
60° |
134.9° |
6.51 |
|
half load |
0.743m |
1.126m |
60° |
134.1° |
7.56 |
|
full load |
0.725m |
1.089m |
60° |
133.4° |
7.52 |
|
0° -180° |
curve |
GZ @ 30 |
max GZ |
@ |
LPS |
|---|---|---|---|---|---|
|
half load |
0.837m |
1.023m |
65° |
130° |
|
|
full load |
0.825m |
1.013m |
60° |
130° |
|
|

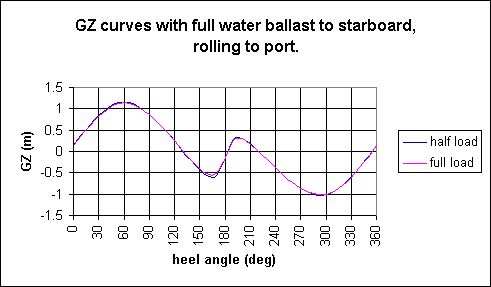

180° -360° |
half load |
0.594m |
-1.012m |
290° |
220° |
|
full load |
0.600m |
-1.012m |
290° |
220° |
|
