A Fast Offshore Cruiser - CAD drawings.
 Appendix contents

To view the WHIP! drawings the plug in from AutoCAD is needed. Use the right mouse button to select zoom or pan etc.

WHIP! drawings JPEG images

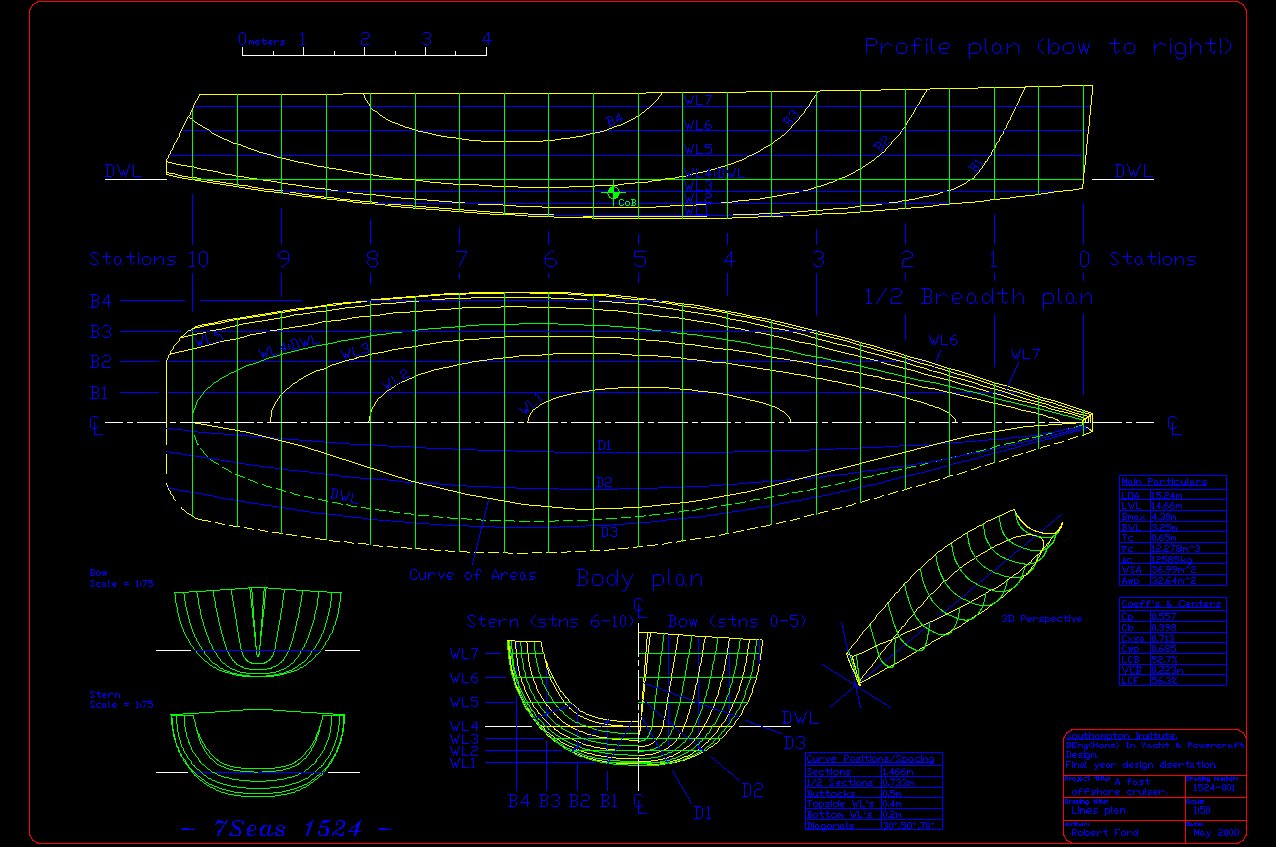

Lines plan. Lines plan. Lines plan.

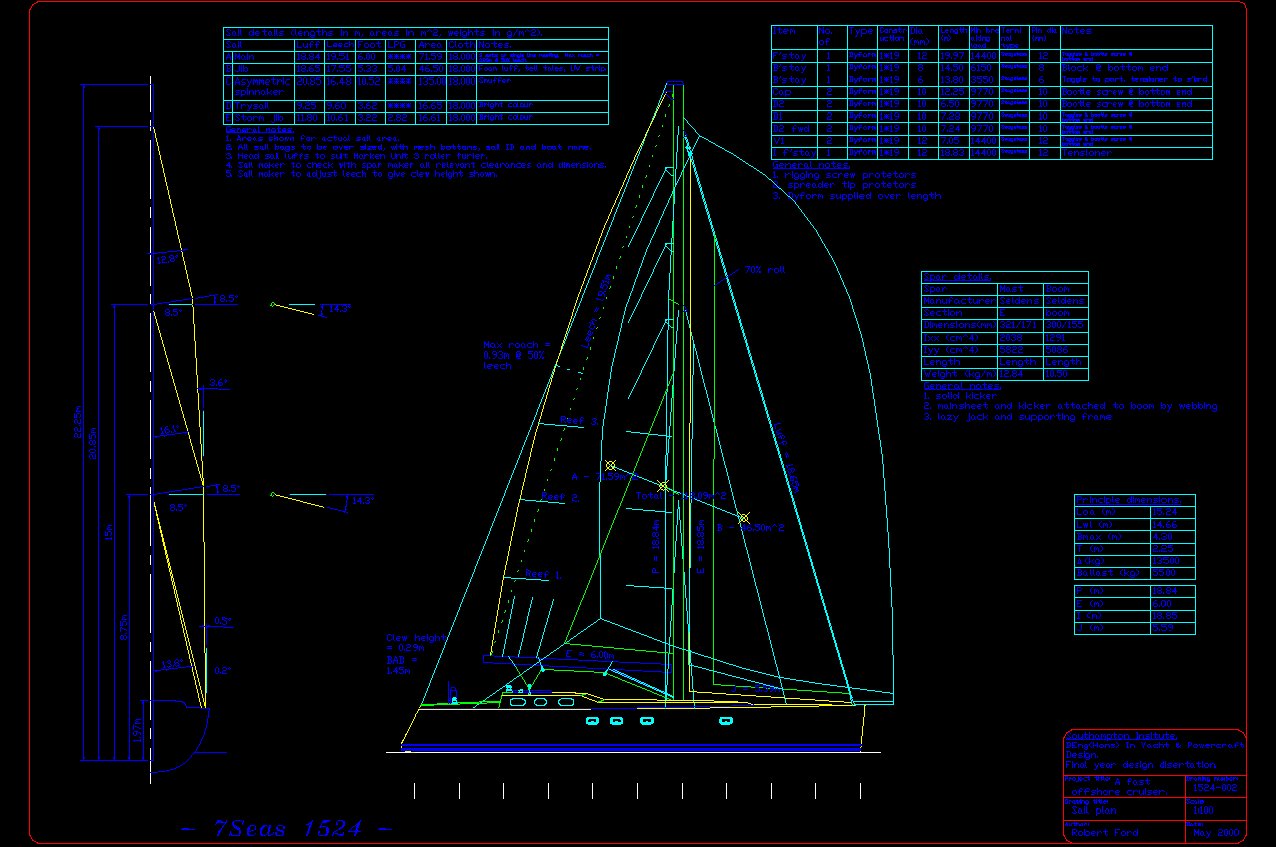

Sail plan. Sail plan. Sail plan.

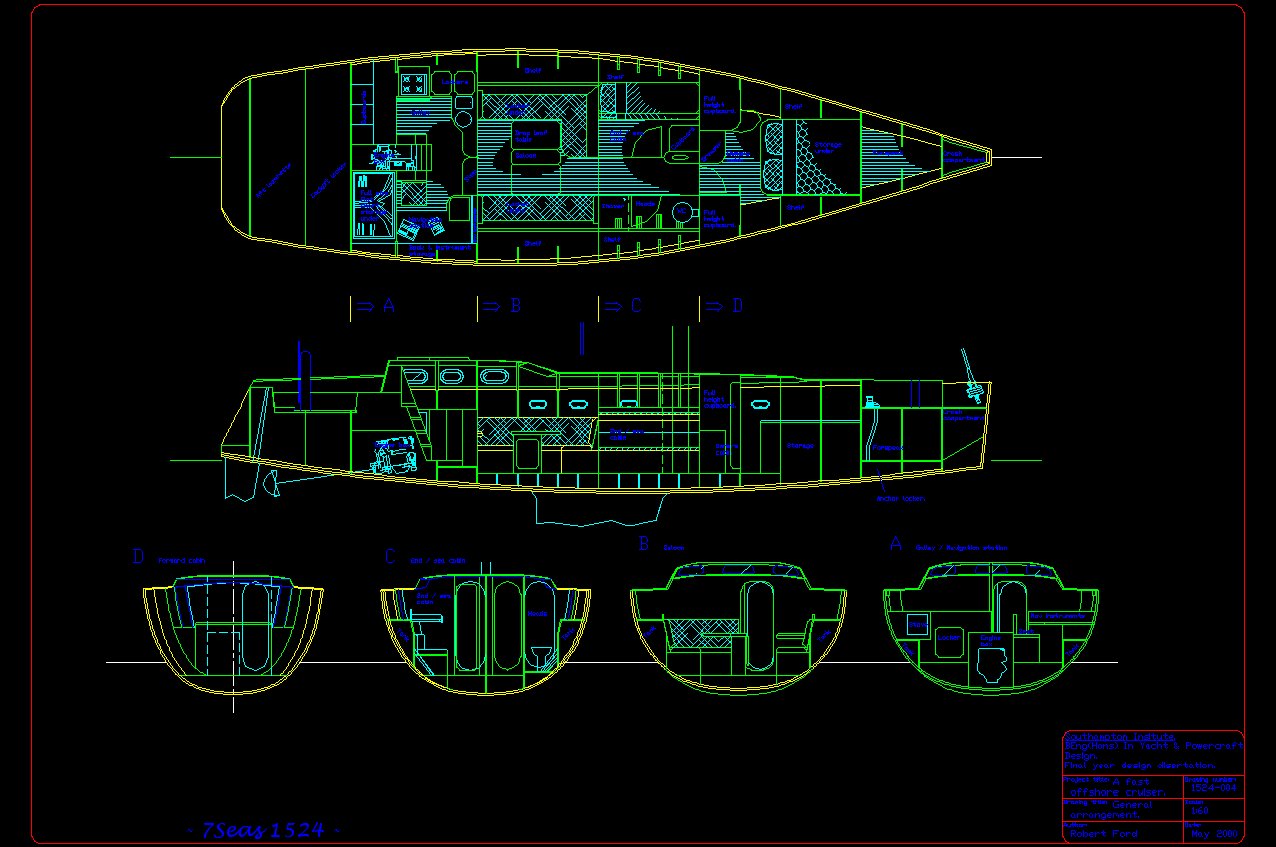

General arrangement. General arrangement. General arrangement.

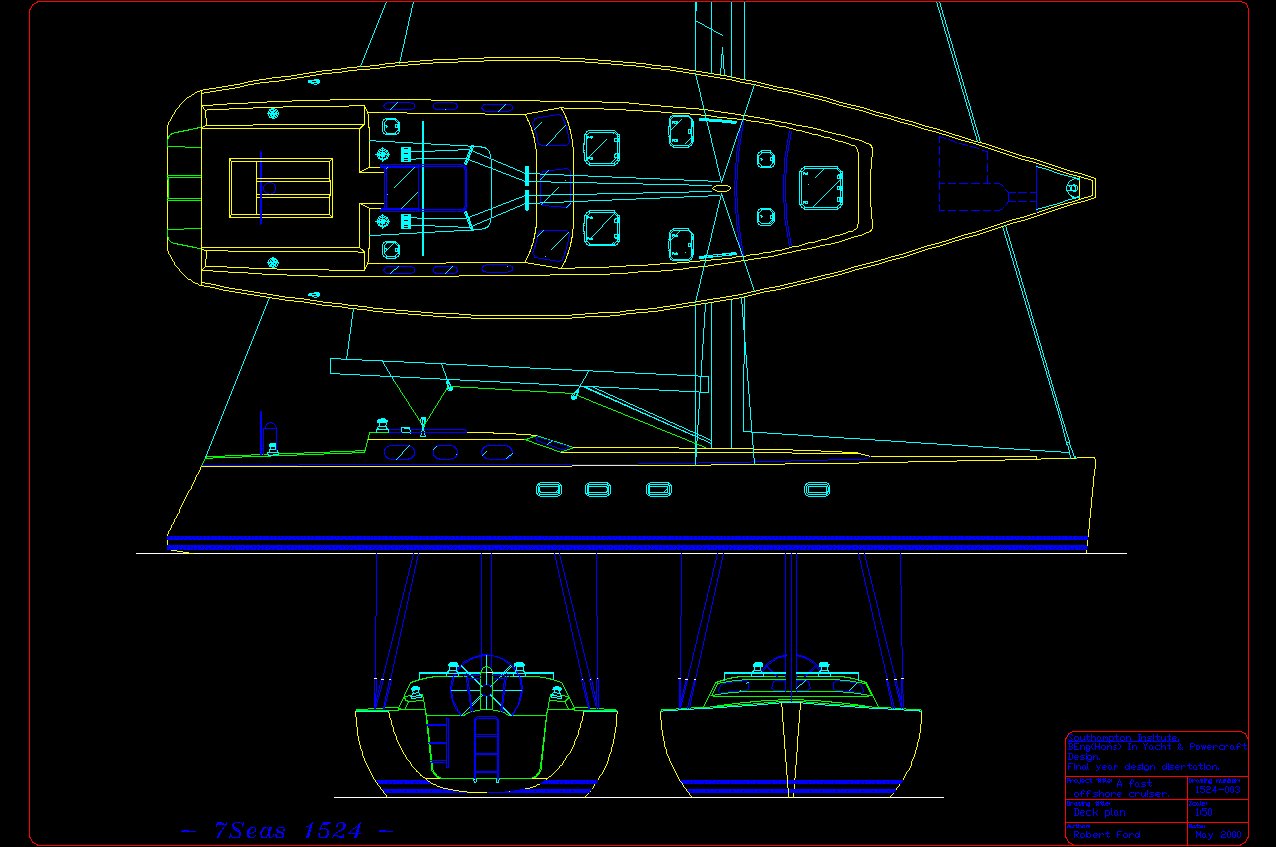

Deck plan. Deck plan. Deck plan.

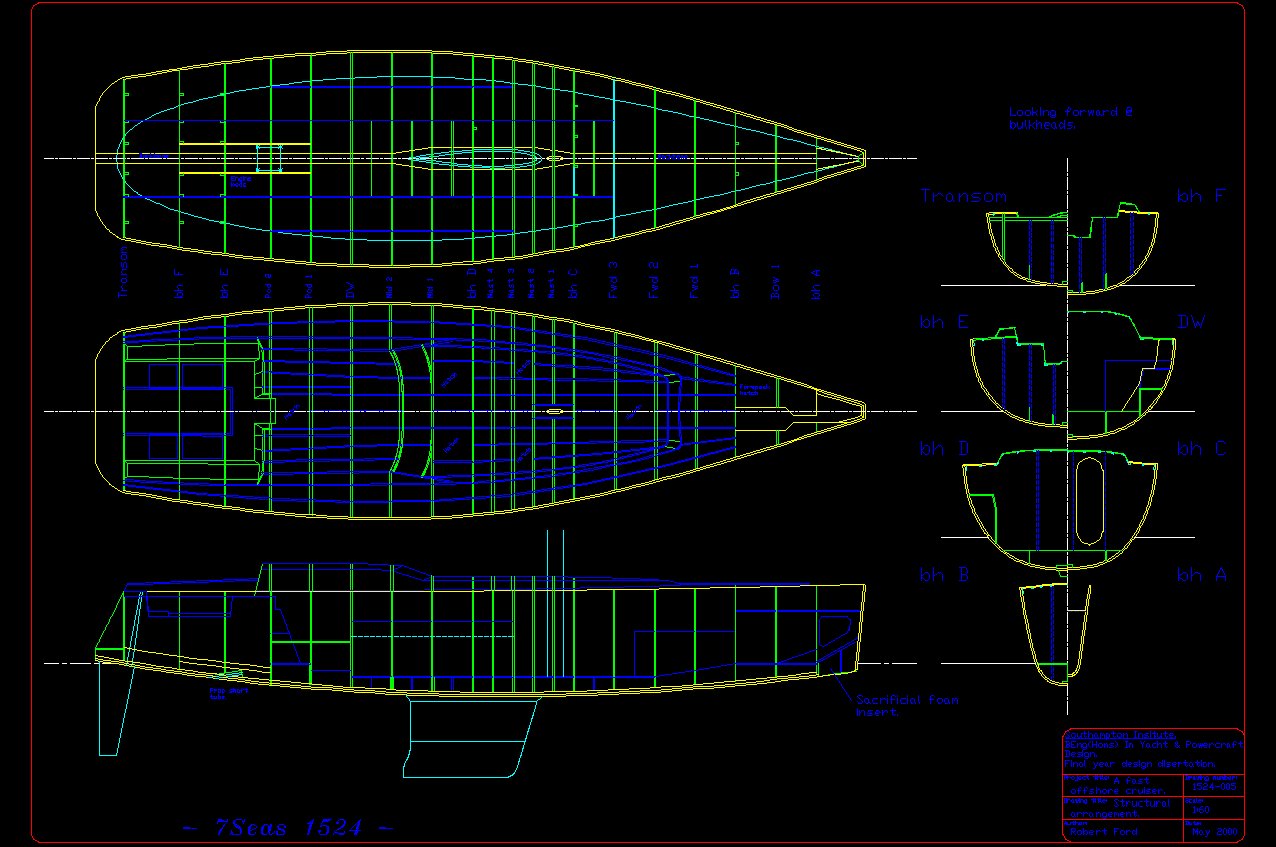

Structure. Structure. Structure.

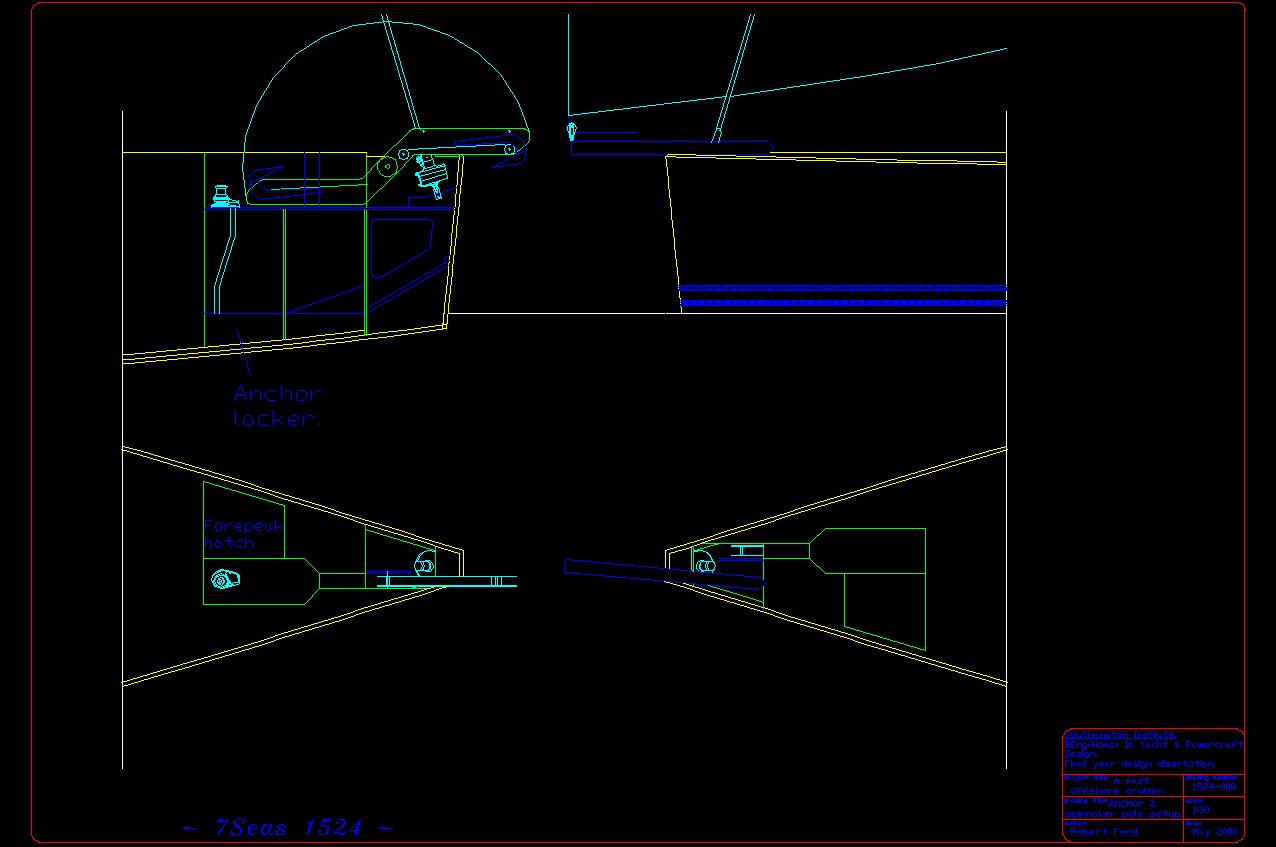

Anchor system. Anchor system. Anchor system.

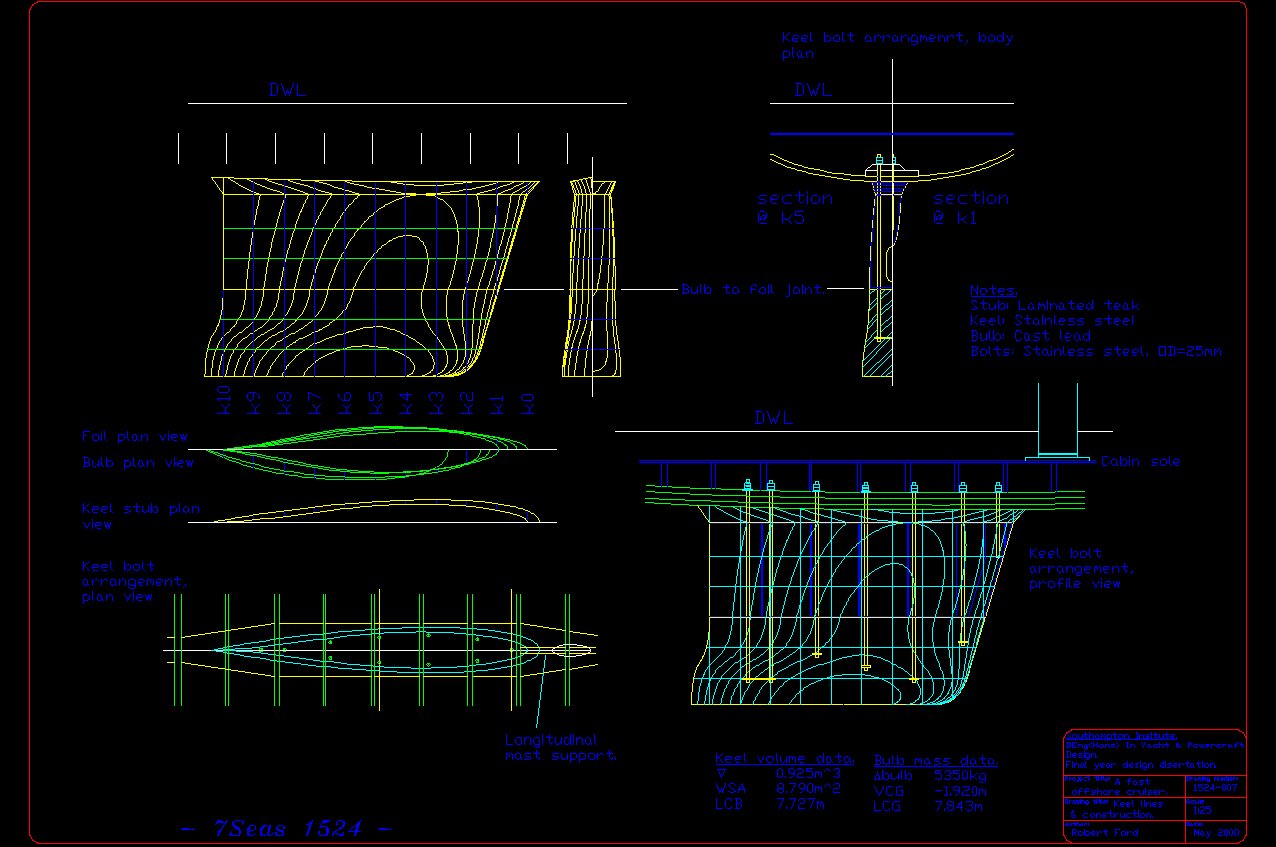

Keel Keel. Keel.

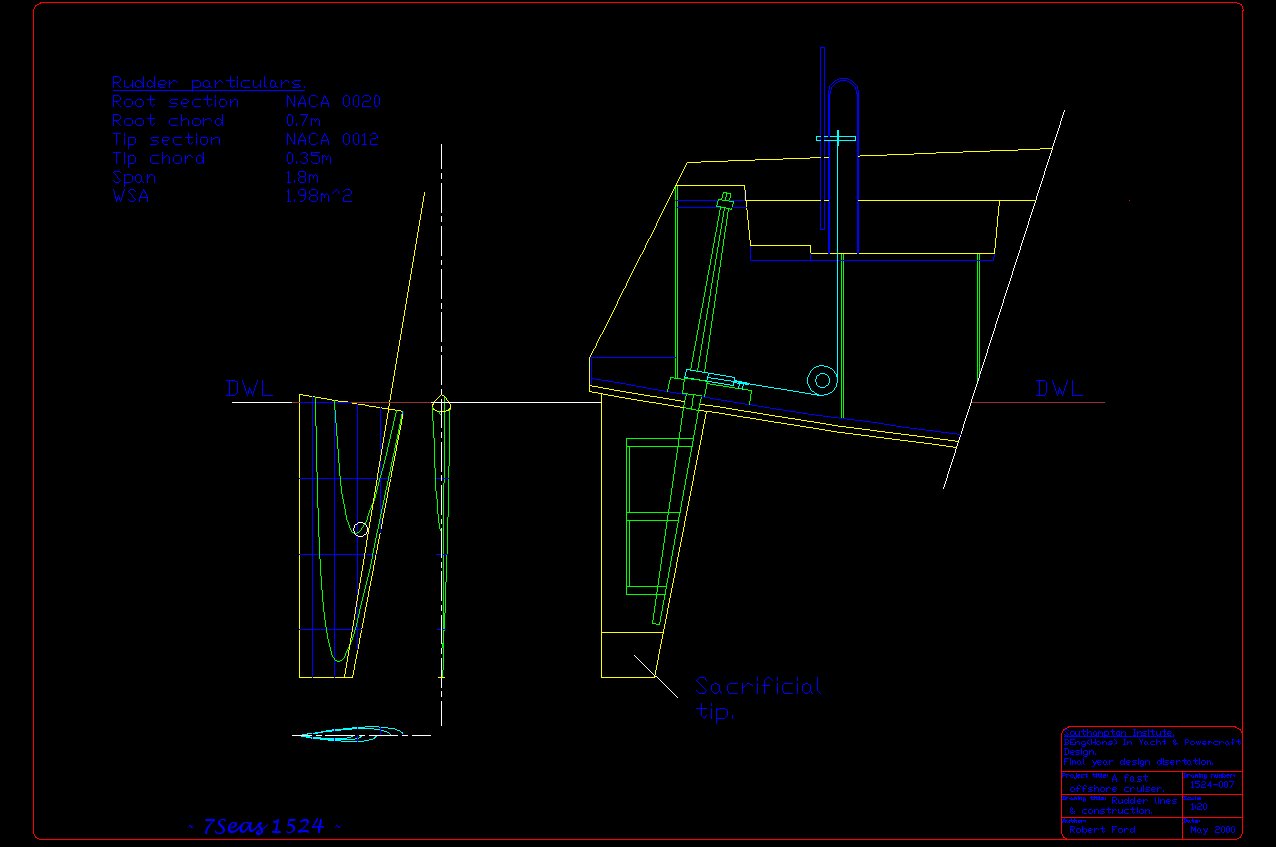

Rudder. Rudder. Rudder.

An image viewer may be required to zoom in on the JPEG images
